Product introduction

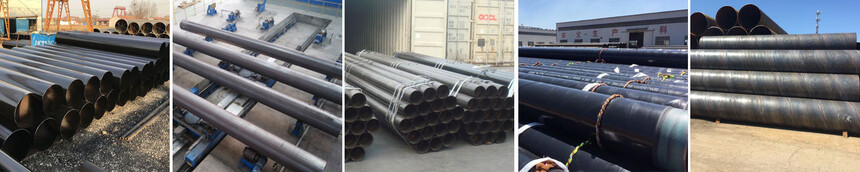

ERW Steel Pipe

Pipe Type: ERW Pipe, ERW Steel Pipe, Electric Resistance Welded Pipe
Application: For Low Pressure Fluid Transmission, Machinery Manufacturing

Specification: OD: 21.3mm ~ 660mm

                          WT: 1mm ~ 17.5mm

                          LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)

Standard & Grade: API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
ASTM A53, ASTM A500, JIS G3466, ASTM A252, ASTM A178, AN/NZS 1163, AN/NZS 1074, EN10219-1, EN10217-1

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped



Production Process for ERW steel pipe:

1.Uncoiling --- 2. Leveling --- 3. End cutting --- 4. End shearing welding --- 5. Supercoil accumulator --- 6. Edge cutting --- 7. Ultrasonic detection --- 8. Forming --- 9. Electric induction welding --- 10. Ultrasonic detection for weld seam --- 11. Medium frequency heat treatment --- 12. Air cooling --- 13. Water cooling --- 14. Sizing --- 15. Flying cutting --- 16. Flush-out --- 17. Cropping --- 18. Flattening testing --- 19. Straightening --- 20. End facing and bevelling --- 21. Hydrodynamic testing --- 22. Ultrasonic detection for weld seam --- 23. Ultrasonic detection for pipe end --- 24. Visual and dimensions inspection --- 25.Weighting and measuring --- 26. Marking --- 27. Coating --- 28. Pipe-end protection --- 29. Bending --- 30. Shipping
